Osciloscopes

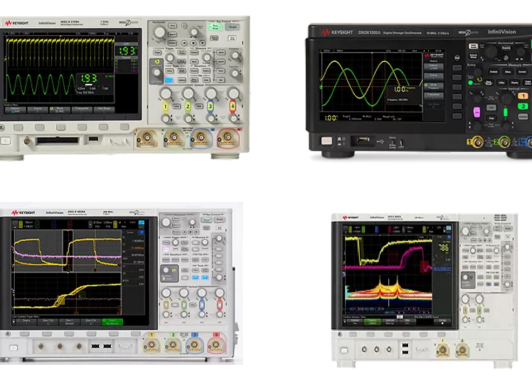

Real-Time Oscilloscopes — General Purpose (InfiniiVision line)

InfiniiVision digital oscilloscopes capture more, quicker with fast waveform update rates, automated measurements, and up to 7-in-1 instrument integration. An intuitive user interface and high-end software applications place automated measurements and accessible expertise at your fingertips.

• Get products to market faster by capturing rare anomalies and glitches with industry-leading waveform update rates of 1,000,000 waveforms per second
• Quickly and easily isolate signal events in seconds by simply drawing a box on the screen with Zone Touch triggering
• Decode serial buses faster with hardware-based serial trigger and decode
• Utilize up to 7 instruments built into one oscilloscope: oscilloscope, arbitrary or function generator, frequency response analyzer (FRA) – Bode plot, digital voltmeter, frequency counter, protocol analyzer, mixed signal analysis (MSO)
• Automate tests and collect data with the standard BenchVue software

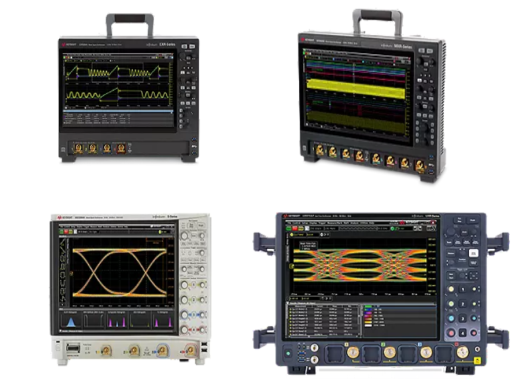

Real-Time Oscilloscopes — Compliance (Infiniium line)

Developing next-generation technology requires world-class signal integrity from your test equipment. Keysight's Infiniium oscilloscopes enable you to conquer your most difficult measurement challenges with superior hardware technology that offers the lowest noise floor, highest effective number of bits (ENOB), and highest bandwidth. Combine this with a wide range of application-specific software and see why other industry leaders trust Infiniium when they need to see their true signals. Mesurement and analysis software:

• Advanced Signal Integrity Analysis
• Jitter, Vertical, and Phase Noise Analysis
• InfiniiScan Event Identification
• Pulse Amplitude Modulation Analysis
• De-embedding
• Power Integrity Analysis

High-speed digital transceivers require validation to ensure compliance with the latest standards. Pair your Infiniium oscilloscope with Keysight's test automation software to speed up debugging and validation. Keysight test suites are ready for these compliance tests:

• USB® Transmitter (from USB 3.2 to USB4v2)
• PCIe Transimtter (from PCIe 4.0 to PCIe 6.0)
• DDR Transimtter (from DDR3 to DDR5)
• IEEE 802.3ck (100/200/400 GB/s)
• HDMI (HDMI 2.1 standard)
• MIPI® Valdiation (for D-PHY, P-PHY, C-PHY technologies)

(more information)

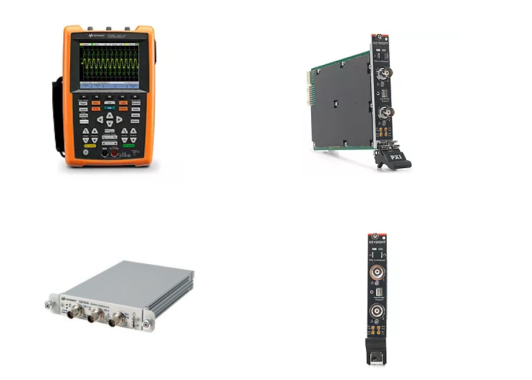

Handheld, Modular, and USB Oscilloscopes

Some tests require professional-level measurements in a more portable, stackable form factor. However, you shouldn’t have to compromise quality for size. Keysight’s USB Streamline Series — handheld and modular oscilloscopes — make high-end technology available wherever you need it, so you can always measure with confidence.

Impressive capabilities in a compact form factor:

• Many of the same capabilities as in a benchtop instrument, but in extremely portable form factors
• See more signal detail with some models reaching update rates of up to 1,000,000 waveforms / second
• Leverage accurate and repeatable measurements, automated code capability, and a consistent, intuitive user experience
• Customize your instrument with application-specific software and a wide range of probing options

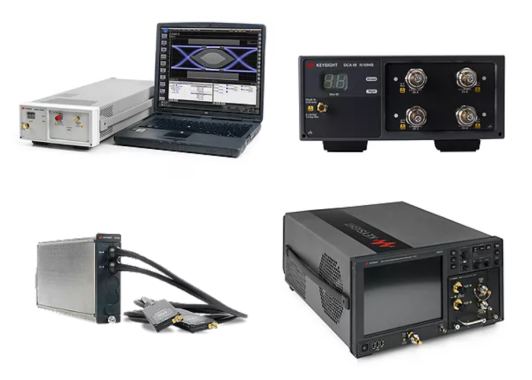

Equivalent-Time Sampling Oscilloscopes

Equivalent-time (sampling) oscilloscopes are also known as digital communication analyzers (DCA). They are designed to visualize and analyze the analog properties of high-speed signals used in data center and wireline telecom applications. The Keysight DCA platform features a wide variety of optical, electrical, and TDR/TDT modules, compliance applications, and a common FlexDCA user interface to ensure more efficient testing in both R&D and manufacturing. Due to an ultra-low jitter and low-noise acquisition system, the Keysight DCA series provides industry-leading measurement accuracy for high-speed digital designs including 400G/800G Ethernet and Fibre Channel.

(more information)
